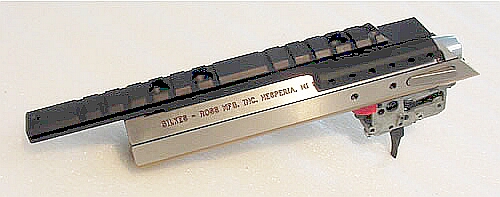

Gilkes-Ross Steel Action

This is an outstanding custom action, with Anschutz-type trigger and unique engineering. It features an integral cut on the action floor which acts as a recoil lug. Specifications: Weight ~ 48 ounces Width ~ 1.5 inches Height ~ 1.6 inches Barrel Shank ~ 1.1875 in. dia., 1.3 in. length, 20 TPI Bolt Diameter ~ 0.9375 inches, right hand Bolt Faces ~ .223 through standard magnum Sight Mount ~ Anschütz style dovetail Locking Lugs ~ (3) conical mating surfaces angled 45 degrees Loading Port ~ right hand, 2.8 inches x 0.95 inches Integral Recoil Lug Recess ~ 1.5 in. long x 1.2 in. wide x 0.25 in. deep Conventional Bedding Bolts ~ (3) ¼-28 spaced 2.25 in. inline (left hand configuration available)
